| Brand Name : | SENTE |
| Model Number : | AKL-YQJ25 |
| Certification : | CE,SGS |
| Price : | US$ 2000-8000 per set |
| Payment Terms : | T/T,Western Union |
| Supply Ability : | 200 sets per month |
| Delivery Time : | 10 working days |
High quality Automatic Toothpick Production Machine / Toothpick Making Machine
Wooden Toothpick Making Machine can use many different specifications woods, such as round log, square wood and
undersized wood.
Firstly, The wood need to be processed as dry blank by band saw or circular saw.
The length is 140, 105, 70 or 35 cm, width is 6 cm, thickness is 35 mm.
And then put them into machines to processing.

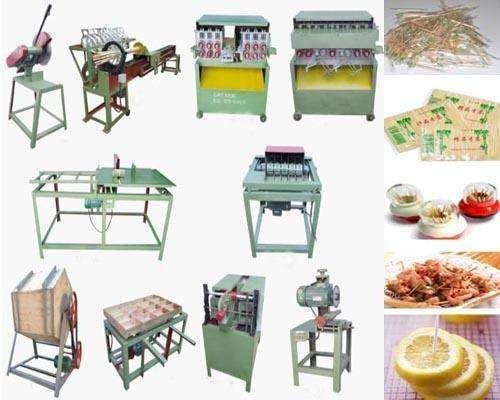

The production line includes machines listed below:
1.Raw bamboo sawer
2.Bamboo dissection machine
3.Fixed thickness and width slicer
4.Bamboo filament shaping machine
5.Bamboo filament set-size machine
6.Rolling polishing machine
7.Bamboo fine away machine
8.Multi-sharpen machine
1.Raw bamboo sawer
| Power: | 2.2KW |
| Machine Size: | 900*510*930mm |
| Weight | 65KG |
| Sawing depth | 150mm |
| Rotate Speed | 3000/min |
2.Bamboo dissection machine
| Power: | 3KW |
| Machine Size | 3000*850*1200mm |
| Weight | 530KG |
| Frequency | 14times/min |
| Remark | The different size of bamboo will be have same width according to change the number of cutter |
3.Combined flakers
| Power | 3.7KW |
| Dimension | Dimension: 1460*660*1000mm |
| Weight | 450kg |
| Speed | 60-80m/min |
Used for purposes of bamboo piece fixed width trimming
4.Bamboo filament shaping machine
Power: 8.1KW
Dimension: 1050*650*990mm
Weight: 450kg
Speed: 60-80m/min
Processing the bamboo slice into bamboo filament.
5.Bamboo filament set-size machine
Power: 0.75KW
Dimension: 1500*650*990mm
Weight: 85kg
Filament Length: 60-450mm
6.Rolling polishing machine
Power: 2.2KW
Dimension: 2500*1000*990mm
Weight: 230kg
Volume: 0.3 cubic meters
7.Bamboo fine away machine
Power: 0.37KW
Machine Size: 370*330*720mm
Weight: 50KG
Rotate Speed: 2800/min
Pre-sale and after-sale service
If you have interest, just feel free to send inquiry, talk with us
online, or call us directly. +8618137338815 MS Niko Wang, and If
you use whatsap, it will be ncie. add this No. We will get back to
you at first time.
|
|
